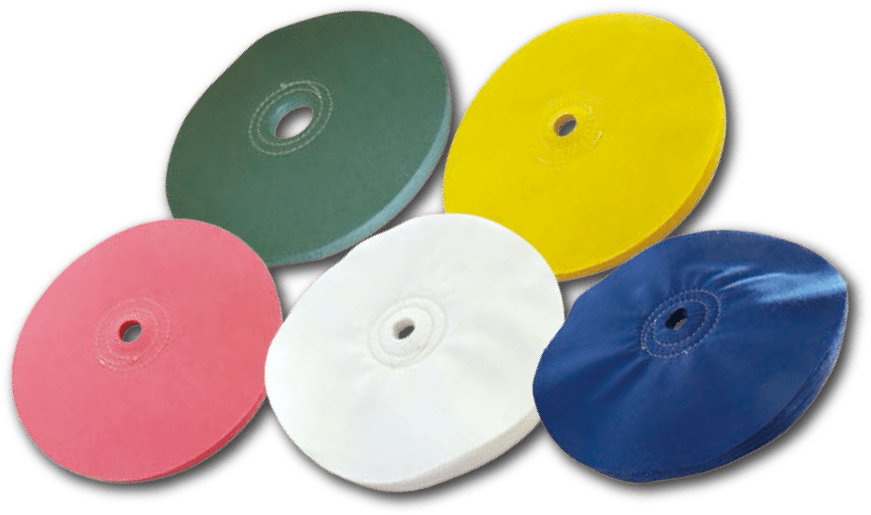

Cotton Buffs
Many types of cotton cloth are available for a wide range of buffing processes.
This buff can be used up to mirror finishing process.
Types of Cotton Buffs
Sewn-in buffing wheels
This buff is made by laminating cotton cloth, sewing it with a sewing machine, and punching it out in a circular shape.
Small buffs
Attached to mandrail for use.
Cotton buff with shaft
You can choose the type of cotton cloth.
You can choose the length of the shaft.
Sewing buff wheel type
Slit processing
This buff is slit unevenly.
This reduces the polishing heat generated by buffing.
Parent and child buff
Buffing with a smaller sized cotton cloth between cotton cloths.
For polishing heat-sensitive materials.
Windmill buff
Buffing with a windmill-like combination of specially processed cloth.
This reduces the polishing heat generated by buffing.
General buff
Sewing machine sewing is only around the center hole.
The feel of polishing is soft.
Spiral sewing machine buff
Machine sewn in a spiral pattern.
The feel of polishing is hard.
3㎜/6㎜/10㎜/12㎜
Concentricity buff
Machine sewn at regular intervals.
Well-balanced hardness.

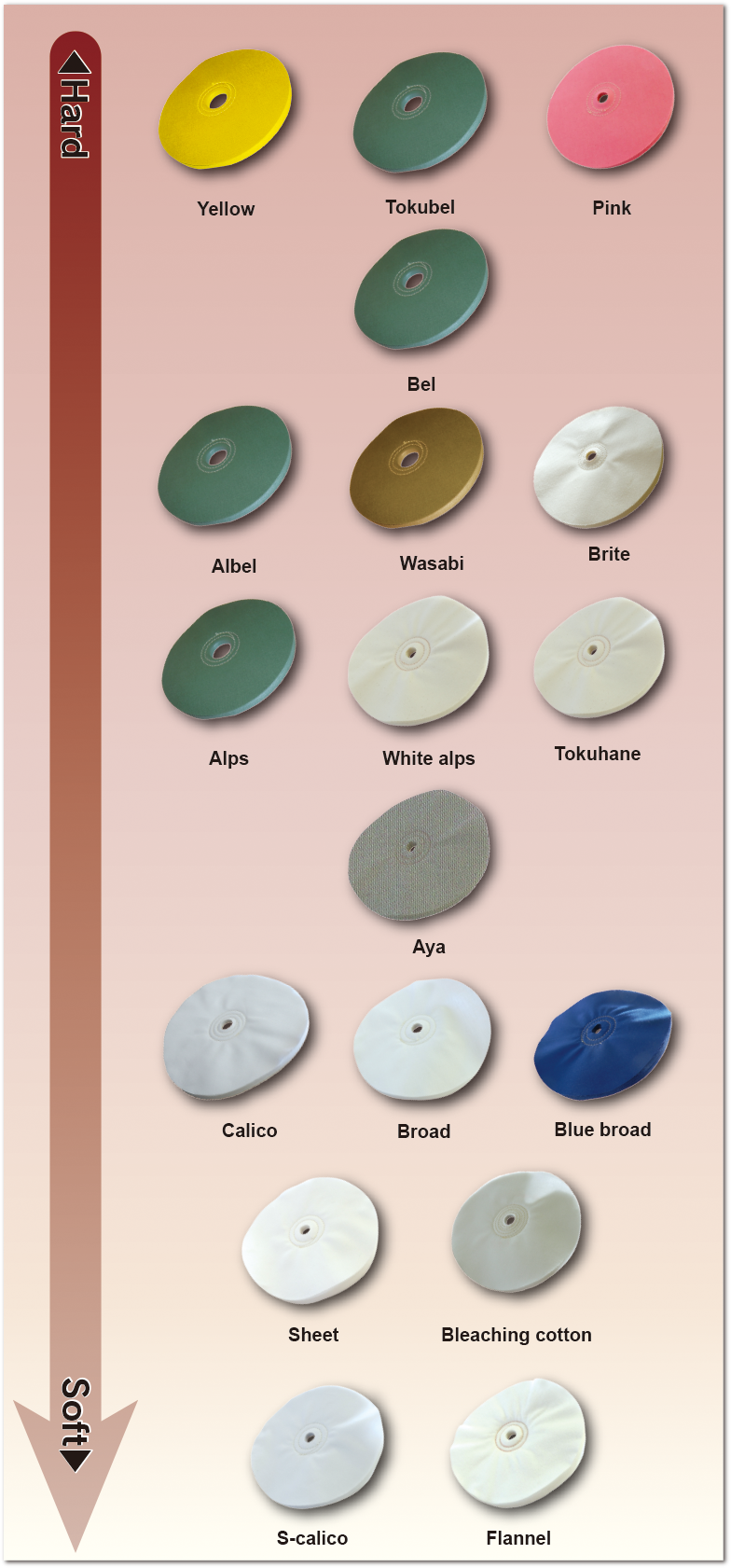

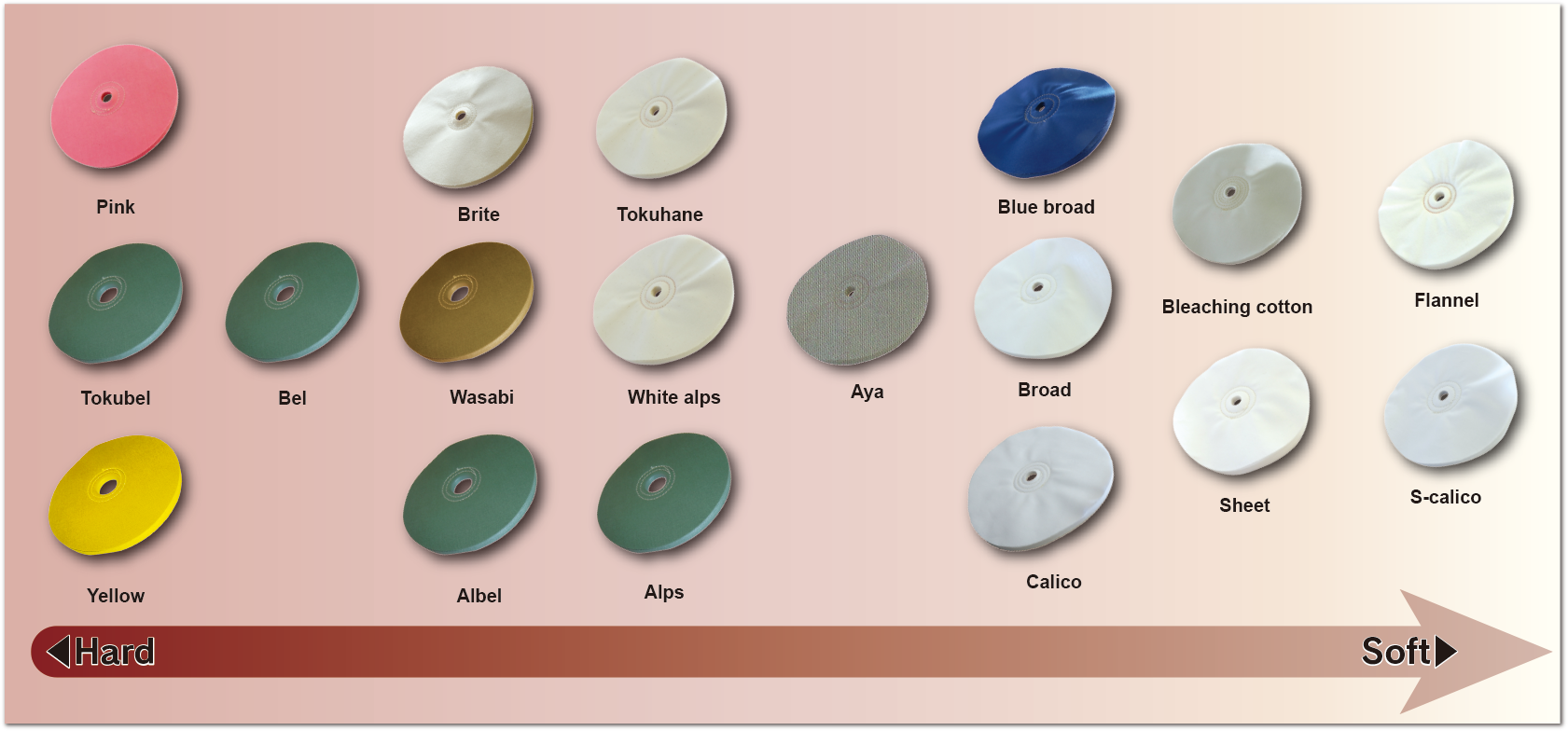

Types of Cotton Cloth
We always have about 17 types of cotton cloths available.Please feel free to contact us for selection according to the material to be polished and the purpose of polishing.
| Size | outer diameter : 16φ ～450φ |
|---|---|
| thick : 2mm～50mm | |
| central hole : 1.5φ ～ 200φ |
| 規格 | 外径 ｜ 16～450mm |
|---|---|
| 厚さ ｜ 1重～50重 | |
| 穴径 ｜ 1～200mm |
Buff size and Examples of machines used
A wide variety of sizes.
We can even take detailed size orders.
This is an example of a machine used.
※Other standard sizes are available in detail.
Tabletop double-headed grinder
outer diameter : 180Φ 210Φ 240Φ
thick : 6mm 8mm 10mm
central hole : 15Φ 22Φ
Large double-headed grinder
outer diameter : 240Φ 300Φ 360Φ
thick : 20mm 25mm 30mm
central hole : 25.4Φ
Head grinder
outer diameter : 60Φ ～100Φ
thick : 5mm～25mm
central hole : 7Φ ～ 8Φ
Flexible grinder
outer diameter : 210Φ 250Φ
thick : 10mm 20mm
central hole : 12.7Φ
hand grinder
outer diameter : 100Φ ～ 150Φ
thick : 5mm～20mm
central hole : 8Φ
Die Grinder
outer diameter : 16Φ ～ 60Φ
thick : 5mm～25mm
central hole : 2.34Φ 3Φ 6Φ
