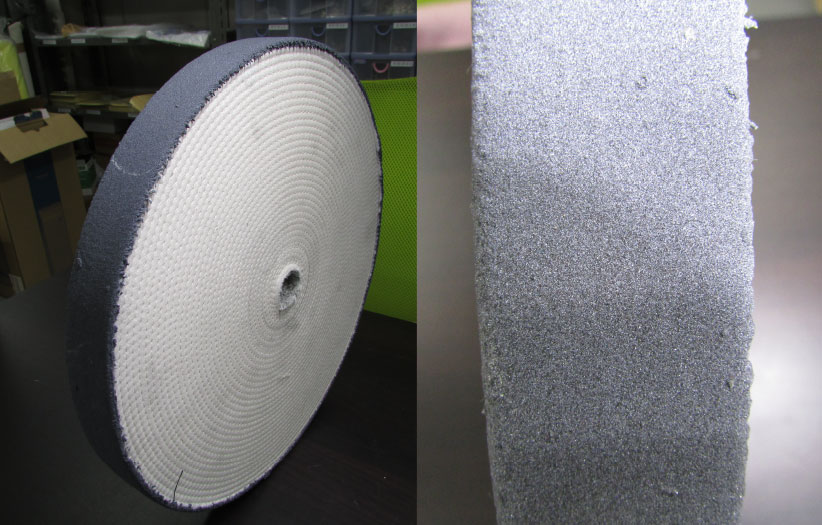

Iron Buffs
A cotton buffing pad coated with iron powder.
Suitable for rough polishing, tool grain removal, and base polishing.
The grain is finer and softer than belt polishing.
Can be manufactured in diameters from 20φ to 400φ.
Types of Iron Buffs
Iron buff with iron powder
The iron powder is attached at the stage of delivery.
The coarseness of iron powder can be selected from #120 to #280.
Soft and hard types are selectable.
No iron powder for buffing foil only
Only buffing is provided.
Customers are requested to apply dresser and iron powder.
Soft and hard types are selectable.
Small diameter iron buffing
No iron powder
Only buffing is provided.
Customers are requested to apply dresser and iron powder.
Soft and hard types are selectable.
Buff size and Examples of machines used
A wide variety of sizes.
We can even take detailed size orders.
This is an example of a machine used.
※Other standard sizes are available in detail.
Tabletop double-headed grinder
outer diameter : 180Φ 210Φ 240Φ
thick : 6mm 8mm 10mm
central hole : 15Φ 22Φ
Large double-headed grinder
outer diameter : 240Φ 300Φ 360Φ
thick : 20mm 25mm 30mm
central hole : 25.4Φ
Head grinder
outer diameter : 60Φ ～100Φ
thick : 5mm～25mm
central hole : 7Φ ～ 8Φ
Flexible grinder
outer diameter : 210Φ 250Φ
thick : 10mm 20mm
central hole : 12.7Φ
hand grinder
outer diameter : 100Φ ～ 150Φ
thick : 5mm～20mm
central hole : 8Φ
Die Grinder
outer diameter : 16Φ ～ 60Φ
thick : 5mm～25mm
central hole : 2.34Φ 3Φ 6Φ

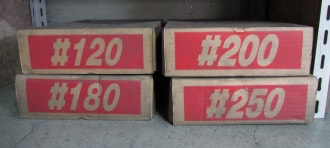

Iron powder coarseness
5 types in total
- ＃120
- ＃180
- ＃200
- ＃240
- ＃280
